LiftMaster Slide Gate Operators in Plano, TX
A1 Gate Guys installs, replaces, and services current LiftMaster slide gate operators on homes, communities, and commercial and industrial properties across Plano and North DFW. This page exists to help you understand which class of LiftMaster slide operator is likely to fit your gate before you call us. The right operator depends on your gate’s actual weight and length, how often it opens and closes, the property it serves, the site and mounting conditions, and the power, safety, and access requirements at that location.
How to choose the right LiftMaster slide gate operator
LiftMaster’s buyer guidance points to the main factors that should be considered when selecting a slide gate operator: the gate type, its size, and how it will actually be used, not a single spec on a page. In practice, that means working through several things together.
Gate weight is a ceiling on what an operator can handle, not a recommendation by itself, and gate length is a separate constraint; a long, light gate and a short, heavy gate can call for different operators even at similar weights. Traffic and duty cycle matter too: a driveway gate that opens a handful of times a day places different demands on an operator than a shared community entrance or a commercial or industrial gate that cycles constantly. Property and application type (residential, HOA or community, ordinary commercial, or industrial) shapes the decision beyond size alone, and gate condition and resistance matter as well; an operator is not meant to compensate for a gate that already drags, binds, or rolls poorly.
Mounting and site conditions, including available space, an existing pad, and whether the job is new construction or a retrofit, affect which operator and mounting approach make sense. Power and backup needs, including available electrical service, solar, and battery backup, factor in, as do the site-specific entrapment-protection requirements every installation needs. Access needs, from basic remote access to myQ smartphone control to a managed system for a community or facility, change what additional hardware is involved. A site evaluation is what brings these factors together and confirms the right operator for your gate.
Current LiftMaster slide gate operator options
A1 Gate Guys commonly works with four current LiftMaster slide gate operators: the CSL24UL, the HDSL24UL, the INSL24UL, and the IHSL24UL. Other LiftMaster slide operators exist for more specific needs, and which of these four (or another model) fits your gate still depends on the factors above. Our gate operators overview covers the full range A1 Gate Guys works with, and if your gate swings open rather than sliding, see LiftMaster swing gate operators instead.

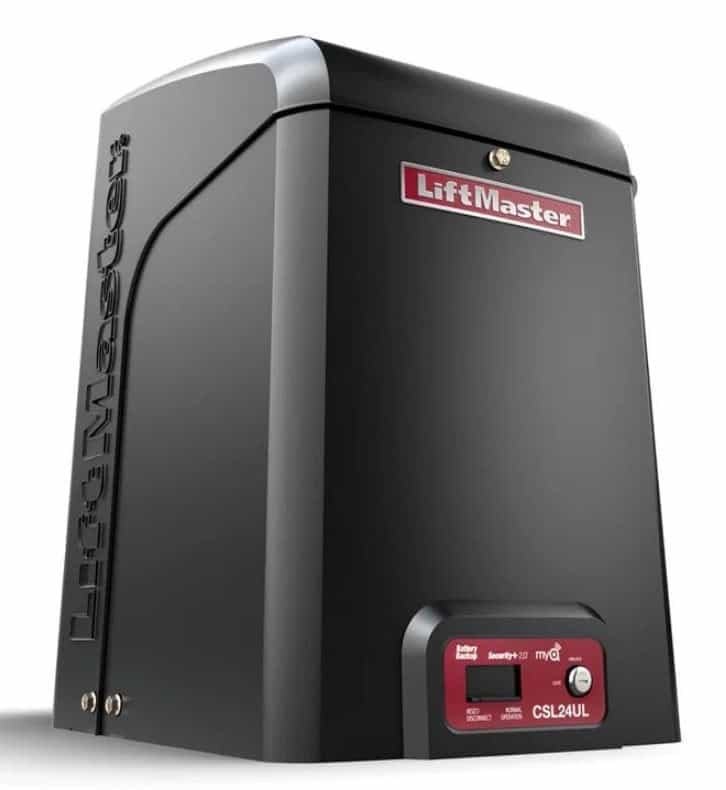

CSL24UL
The CSL24UL is LiftMaster’s 24VDC High-Traffic Commercial Slide Gate Operator, rated for gates up to 1,500 lb and 50 ft. It is a continuous-duty operator with a commercial gear-driven transmission, and it is a common choice across ordinary driveway, HOA, and community gates, along with many everyday commercial gates that do not require extreme capacity. Its combination of rated capacity, battery backup, and solar readiness covers a wide range of typical installations. Full specifications are on LiftMaster’s CSL24UL product page.

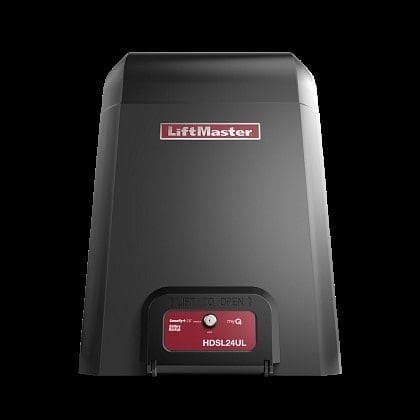

HDSL24UL
The HDSL24UL is LiftMaster’s 24VDC Heavy-Duty Variable Speed Slide Gate Operator, rated for gates up to 3,000 lb and 75 ft, with variable travel speed between 0.5 and 1.0 ft/s. It uses a brushless DC motor and a heavy-duty direct-drive gearbox built for gates and use patterns beyond the CSL24UL’s range, and it may be a stronger candidate when a gate’s weight or length exceeds what the CSL24UL is rated for, when variable speed suits the site, or when the drivetrain needs to handle more sustained work. As with any model, the final call depends on the specific gate and site, not on capacity alone. Full specifications are on LiftMaster’s HDSL24UL product page.
INSL24UL
The INSL24UL is LiftMaster’s 24VDC Continuous Duty Industrial Slide Gate Operator, rated for gates up to 2,200 lb and 70 ft. Worth saying plainly: the INSL24UL is not simply a bigger HDSL24UL. Its rated capacity is actually lower than the HDSL24UL’s. What sets it apart is its industrial-format construction, a lockable steel cabinet, and post-mount or riser-mount hardware built for industrial retrofit and continuous-duty environments such as manufacturing sites, utilities, and other restricted-access facilities. The INSL24UL earns its place when the installation environment and duty demands call for that industrial architecture, not because a project needs more raw capacity than the HDSL24UL provides. See LiftMaster’s INSL24UL product page for full details.
IHSL24UL
The IHSL24UL is LiftMaster’s 24VDC Continuous Duty Industrial Slide Gate Operator, rated for gates up to 5,500 lb and 90 ft, the highest capacity of the four. Like the INSL24UL, it is built around an industrial steel cabinet and post-mount or riser-mount hardware for continuous-duty, industrial-format installations. In practice, the IHSL24UL is generally reserved for the most demanding applications in this lineup: extremely heavy or long gates in industrial or high-security settings where continuous-duty operation and industrial construction both matter. Additional information is on LiftMaster’s IHSL24UL product page.
How to choose the right LiftMaster slide gate operator
| Model | Max. gate weight | Max. gate length | Duty / application | Typical fit | Distinguishing factor |
|---|---|---|---|---|---|
| CSL24UL | Up to 1,500 lb | Up to 50 ft | Continuous duty, high-traffic commercial | Driveway, HOA/community, and everyday commercial gates | Common starting point across a wide range of applications |
| HDSL24UL | Up to 3,000 lb | Up to 75 ft | Continuous duty, heavy-duty, variable speed | Heavier or longer gates, or higher-workload sites | Variable travel speed (0.5 to 1.0 ft/s) and heavier-duty drivetrain |
| INSL24UL | Up to 2,200 lb | Up to 70 ft | Continuous duty, industrial | Industrial or restricted-access sites needing industrial-format construction | Industrial steel cabinet and mounting; not a higher-capacity HDSL24UL |
| IHSL24UL | Up to 5,500 lb | Up to 90 ft | Continuous duty, industrial | The heaviest and longest gates in demanding industrial settings | Highest capacity of the four; reserved for extreme applications |
Ratings shown are LiftMaster’s published maximums, not selection guarantees. An operator rated for a given weight and length is not automatically the right choice for every gate at that size.
CSL24UL vs HDSL24UL: how to tell which one you need
A useful way to compare the CSL24UL and HDSL24UL is to look at the demands of the gate and how the property uses it, rather than treating one as residential and the other as commercial. Both operators serve a broad mix of property types. The real decision comes down to a handful of practical factors: gate weight and length relative to each model’s rated maximum (a gate approaching or exceeding the CSL24UL’s 1,500 lb or 50 ft rating is a reasonable candidate for the HDSL24UL’s higher 3,000 lb and 75 ft capacity); traffic and use intensity, since a busier shared entrance demands more of an operator than an occasional driveway gate; the HDSL24UL’s 0.5 to 1.0 ft/s variable travel speed, useful where a site benefits from adjustable timing; and gate condition and resistance, since a gate that rolls with more resistance from grade, wind, or hardware asks more of an operator regardless of its rated capacity.
A gate that falls comfortably within the CSL24UL’s range does not automatically need the extra capacity of the HDSL24UL. Bigger is not automatically better.
When industrial LiftMaster slide operators make sense
For many residential, community, and standard commercial applications, the CSL24UL or HDSL24UL may be the more relevant starting point, depending on the gate and site conditions. The INSL24UL and IHSL24UL exist for a narrower set of situations: manufacturing sites, utilities, municipalities, warehouses, and other industrial or restricted-access facilities where continuous-duty operation and industrial-format construction, including a lockable steel cabinet and post-mount or riser-mount hardware, are part of the requirement.
Choosing between the two comes down to the same weight, length, and duty questions covered above, applied to that industrial context, plus the site’s mounting and retrofit needs. If your existing operator is an older industrial model you are looking to replace, or you manage a facility with continuous-duty gate traffic, that is the right context to discuss an industrial LiftMaster slide operator with A1 Gate Guys. If your current commercial operator has failed, our commercial gate repair page is the faster route.
Battery backup and myQ connectivity
Battery backup. All four of these current LiftMaster slide operators support battery-backed operation, meaning the gate can keep working for a period after utility power is lost rather than being stranded the moment the electricity goes out. How long that lasts is not fixed; it depends on the battery configuration, the age and condition of the batteries, temperature, gate weight, and any accessories drawing power from the same system. Battery backup is a real feature worth having, but it is not an indefinite power source, and no configuration should be treated as one.
myQ connectivity. These operators can connect into LiftMaster’s myQ ecosystem, but “myQ compatible” is not the same thing as built-in Wi-Fi. Smartphone monitoring and control typically require additional LiftMaster hardware, such as an Internet gateway, connected to your network; the INSL24UL and IHSL24UL specifically call for an additional gateway unit for smartphone control. A homeowner using myQ on a single driveway gate is a different setup than a community or facility using a managed access system across multiple gates and users, and it is not something every installation automatically includes. Mention it during your assessment so it can be planned into the installation.

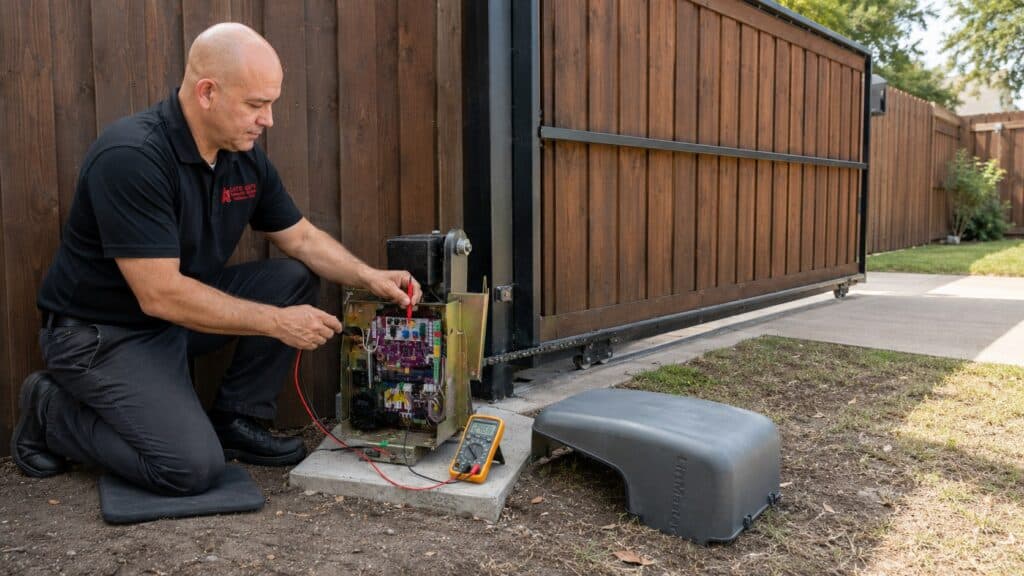

Professional installation and site evaluation
Selecting the right operator is only part of the job. Installation still has to account for the gate itself, whether it is your existing gate or a gate fabricated separately for the project, since A1 Gate Guys works on the operator and access components rather than building gates or fences. That evaluation is what turns a model recommendation on this page into a confirmed choice for your property, with final mounting, power, and safety-device details decided case by case.
In general, proper operator selection and installation works through the same sequence:
- Look at the existing gate and site conditions
- Confirm gate weight, length, and traffic or duty requirements
- Match those requirements to the right operator class and model
- Confirm mounting, power, and safety-device requirements
- Complete installation and final setup
Why work with A1 Gate Guys on this
A1 Gate Guys works specifically with gate operators and the access equipment connected to them.
- Specializes in gate operators and connected access equipment, rather than treating automation as one item among many services
- Works with the current LiftMaster slide operator lineup and stays familiar with how the models differ
- Helps buyers understand the factors that should be considered when selecting a slide gate operator, explained in plain terms
- Focuses on the operator and access components on your existing gate system, not gate fabrication, fencing, or garage doors
Slide gate operator safety and UL 325
A slide gate operator is one part of a larger gate system, and every installation has entrapment zones that need proper protection. Monitored photoelectric sensors and monitored safety edges are common examples of the devices used to protect those zones, and the right combination depends on your gate and site layout. This is part of what UL 325 addresses: gate operators should be installed with appropriate, monitored entrapment protection rather than a single generic setup. It is also worth clearing up a common point of confusion: vehicle detection loops are useful for sensing a vehicle in the gate’s path, but they are not a substitute for monitored entrapment protection. Final safety-device selection is evaluated as part of your installation, not decided from a product page.
LiftMaster slide gate operator service in Plano and North DFW
A1 Gate Guys installs, replaces, and services current LiftMaster slide gate operators for properties throughout Plano and the surrounding North DFW area, including McKinney, Frisco, Allen, Prosper, and Richardson. Whether you are automating a new gate, upgrading an aging operator, or trying to figure out which current LiftMaster model fits a commercial or industrial gate, the process starts with a look at your gate and site.
Replacing an existing slide gate operator
If you already have a slide gate operator and it is having problems, replacing it with a current LiftMaster model is often an option, but whether replacement makes more sense than repair depends on the condition of your existing operator and gate, what parts and wiring are already in place, and what safety and access equipment the site needs. That is a big enough question to deserve its own answer; see our guide, Repair or Replace Your Gate Operator: How to Decide. If your current operator is simply malfunctioning right now, our Automatic Gate Won’t Close? and Common Gate Operator Issues pages are the faster place to start.
Frequently asked questions
How do I know which LiftMaster slide gate operator is right for my gate?
It depends on your gate’s weight and length, how often it is used, your property type, site and mounting conditions, and your power, safety, and access needs. This page walks through those factors, but the final answer comes from an on-site look at your actual gate.
What is the difference between CSL24UL and HDSL24UL?
The CSL24UL is rated up to 1,500 lb and 50 ft and covers a wide range of driveway, community, and everyday commercial gates. The HDSL24UL is rated up to 3,000 lb and 75 ft, adds variable travel speed, and suits heavier gates or higher-workload sites. Neither is simply “the residential one” or “the commercial one”; the right choice depends on your gate’s size, use, and condition.
When would an INSL24UL or IHSL24UL make sense?
These are LiftMaster’s industrial slide operators, built for continuous-duty use and industrial-format mounting at manufacturing sites, utilities, and other restricted-access facilities. The INSL24UL is rated up to 2,200 lb and 70 ft, and the IHSL24UL up to 5,500 lb and 90 ft. Most homes, communities, and ordinary commercial properties will not need either one; they are worth discussing when your property is genuinely industrial or has continuous, heavy gate traffic.
Does gate weight alone determine the right operator?
No. Weight is one factor among the several covered above, and a gate well within an operator’s maximum rating does not automatically mean that operator is the best fit.
Can a current LiftMaster slide operator be installed on my existing gate?
Often, yes, but it depends on your existing gate’s condition, current wiring and power setup, and how well a current model matches that gate. A site evaluation is the safest way to confirm which operator fits the gate and installation conditions.
Do these LiftMaster slide operators have battery backup?
Yes, all four support battery-backed operation, which keeps the gate working for a period during a power outage. How long that lasts depends on the battery setup, gate load, temperature, and connected accessories; it is not an unlimited power source.
Can I use myQ with a LiftMaster slide gate operator?
These operators can connect into LiftMaster’s myQ ecosystem, but smartphone control typically requires additional hardware, such as an Internet gateway, and the setup differs between a single homeowner gate and a managed community or facility system. We can review what that requires for your installation.
What safety devices are needed with a slide gate operator?
Monitored entrapment protection appropriate to the gate and site, such as photoelectric sensors and monitored safety edges. Vehicle detection loops are useful but are not a substitute for that protection.
Ready to talk through your gate?
If you are trying to figure out which LiftMaster slide gate operator fits your gate, or you need one installed, replaced, or evaluated in Plano or North DFW, A1 Gate Guys can help evaluate your gate and discuss appropriate LiftMaster slide operator options.
or reach out through our Contact page to schedule an assessment.
